The engine's stable operation directly determines the equipment's service life and operating efficiency. The engine filtration system is a crucial protective barrier in this process. It can effectively remove harmful impurities in the circulating medium, avoid wear and tear of internal components, and reduce the probability of engine failures. What are the essential differences between oil and fuel filters? Can they be used interchangeably? This article will comprehensively interpret these two components, combining professional technical parameters and practical application experience.
The oil filter's fundamental purpose is to filter out impurities and particulate matter in the engine oil, maintain the cleanliness of the lubricating oil, and ensure that the engine's internal moving parts are always in a good lubrication state.
It is installed inside the lubrication system, usually on or near the engine block. The working principle of the oil filter:
When the engine runs, the oil pump drives the engine oil to flow through the filter element of the oil filter.
The filter medium inside the filter will intercept impurities in the oil, and the filtered clean oil will flow back to the engine's lubrication channels to lubricate components such as crankshafts, camshafts, and piston rings.
The main filtration targets of the oil filter are harmful substances generated during engine operation and external contaminants, including metal shavings produced by friction of internal parts, carbon particles formed by incomplete fuel combustion, and dust entering the lubrication system through gaps.

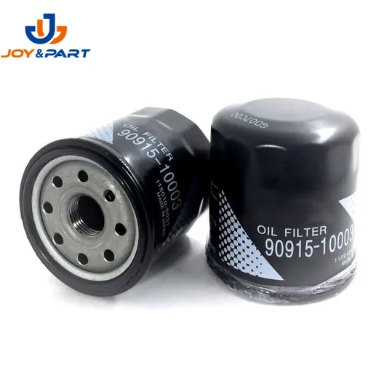

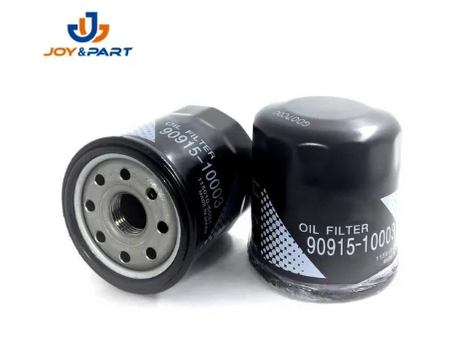

Spin-on oil filters：It is the most widely used type in the automotive aftermarket. It has a simple structure and is easy to replace. It can be disassembled and installed only with a dedicated wrench. It is suitable for most passenger cars and light commercial vehicles.
Cartridge oil filters：This type of filter has a more environmentally friendly design. Only the filter element needs to be replaced during maintenance, and the outer shell can be reused. It is commonly used in some European brand models.
Full synthetic filter element oil filters：It adopts high-performance synthetic filter materials, which have higher filtration efficiency and dirt-holding capacity.
The fuel filter's primary function is to filter impurities and moisture in the fuel before the fuel enters the engine's combustion chamber, ensuring the cleanliness of the fuel supplied to the fuel injectors.
It is installed in the fuel supply system, specifically between the fuel tank and the fuel injectors. The working principle of the fuel filter:
After the fuel pump draws fuel from the tank, it flows through the fuel filter.
The filter element uses its own filtration structure and media to intercept impurities in the fuel.
Its water-separating design removes free water from the fuel.
The filtered, clean, and water-free fuel is then delivered to the injector, atomized, and introduced into the combustion chamber to participate in combustion.
The main filtration targets of the fuel filter are different from those of the oil filter. It mainly focuses on contaminants mixed in the fuel, including rust particles generated by the corrosion of the fuel tank and fuel lines, sediment accumulated at the bottom of the fuel tank, and moisture mixed in during fuel storage and transportation.

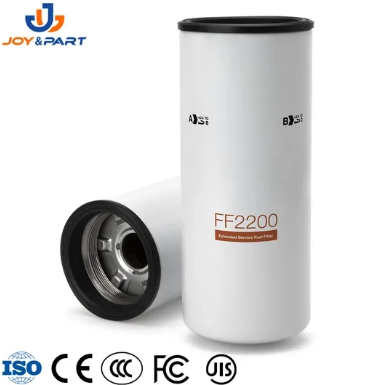

External fuel filters：It is installed on the external fuel line, easy to inspect and replace, and is widely used in traditional gasoline vehicles and light diesel vehicles.
Internal fuel filters：It is integrated into the fuel tank and has a longer service life. It usually does not need frequent replacement, and is commonly used in most modern passenger cars.
High-pressure direct injection fuel filters：It is specially designed for engines with high-pressure direct injection systems. It can withstand higher fuel pressure and has higher filtration precision to meet the working requirements of high-precision fuel injectors.
Dimension | Oil Filter | Fuel Filter |
Filtration Media | High-density filter paper mixed with glass fiber High tensile strength, stable performance under high temp & pressure | Hydrophobic filter paper/nylon materials Water-separating, corrosion-resistant to fuel |
Filtered Particles & Targets | Solid particles (5–30 microns): metal shavings, carbon deposits, dust Core goal: Protect engine internal moving parts from wear | Solid impurities + water (1–10 microns): rust, sediment, free water Core goal: Protect fuel system precision parts (injectors/pumps) from clogging/corrosion |
Working Environment & Pressure | High temperature (up to 120°C), high pressure (2–4 bar) Withstands high-temp engine oil impact | Low temperature, low pressure (traditional: 0.3–0.5 bar; high-pressure direct injection: 3–5 bar) Fuel corrosion resistance required |
Structures & Materials | Complex structure: filter element + check valve + bypass valve | Simple structure: focus on filtration & water separation Diesel version: optional water level sensor (water drainage reminder) |
Service Life & Replacement Cycle | Synchronized with oil change: 5,000–10,000 km / 6–12 months | Longer service life External: 20,000–40,000 km Internal: 60,000–100,000 km |
The filter medium of the oil filter needs to adapt to the characteristics of high temperature, high pressure and high viscosity of engine oil. It is usually made of high-density filter paper mixed with glass fiber materials. This material has strong tensile strength and can maintain stable filtration performance under high temperature and high pressure conditions.
The filter medium of the fuel filter is mainly aimed at the low viscosity characteristics of gasoline and diesel. It uses hydrophobic filter paper or nylon materials, which can not only intercept solid impurities, but also effectively separate water from the fuel.
The oil filter mainly filters solid particles generated during engine operation, such as metal shavings, carbon deposits and dust. The particle size of the filtered target is usually 5–30 microns. Its core goal is to protect the engine's internal moving parts from wear.
The fuel filter mainly filters rust, sediment and water in the fuel. The filtered particle size is 1–10 microns. Its core goal is to protect the precision components of the fuel supply system, such as fuel injectors and fuel pumps, from clogging and corrosion.
The oil filter works in the engine lubrication system with high temperature (up to 120°C) and high pressure (usually 2–4 bar). It needs to withstand the impact of high temperature engine oil and ensure unobstructed oil flow.
The fuel filter works in the fuel supply system with relatively low temperature and pressure. The working pressure of the traditional fuel system is about 0.3–0.5 bar, and even the high-pressure direct injection system is only 3–5 bar. In addition, the fuel filter needs to have corrosion resistance to prevent fuel corrosion from affecting its service life.
The structure of the oil filter is more complex. In addition to the filter element, it is also equipped with a check valve and a bypass valve:
The check valve can prevent the engine oil from flowing back to the oil pan when the engine is shut down.
The bypass valve can open automatically when the filter element is clogged, allowing unfiltered oil to circulate.
The structure of the fuel filter is simpler, focusing on the filtration and water separation functions. Some diesel fuel filters are also equipped with a water level sensor to remind the user to drain water in time.
The replacement cycle of the oil filter is consistent with the oil change cycle, usually every 5,000–10,000 kilometers or 6–12 months. This is because the filter element will be saturated after long-term use, and the filtration efficiency will decrease significantly.
The replacement cycle of the fuel filter is longer:
The external fuel filter needs to be replaced every 20,000–40,000 kilometers.
The internal fuel filter integrated in the fuel tank can be replaced every 60,000–100,000 kilometers.
Definitely not. Many people will have this idea because the appearance of the two filters is somewhat similar, but forced interchangeability will bring serious results to the engine:
Mismatched filter targets lead to ineffective filtration.
Differences in pressure and flow rate requirements affect engine operation.
Safety and warranty risks, such ad fuel system clogging, fuel injector damage, and engine performance degradation.
When purchasing, you should first check the vehicle maintenance manual, confirm the model, specifications and OEM number of the required filter, and select products that match the parameters. It is recommended to choose filters produced by regular manufacturers (like Joy International Trade) to ensure product quality and filtration efficiency.
The OEM number is the unique identification code of the filter. When purchasing, you can compare the OEM number marked on the original filter to ensure that the purchased filter is completely matched with the vehicle.
The oil filter and fuel filter have essential differences in functions, working principles, structural designs and application scenarios, so the two filters cannot be used interchangeably. Whether it is for daily vehicle maintenance or the maintenance of engineering machinery, paying attention to the selection and replacement of filters is a basic but crucial link.
